Stainless Steel 5~500kg Mini Force Sensor IN-MI-019

Name: Stainless Steel 5500kg Mini Force Sensor INMI019
Brand: Innovation
Price: 1 USD

Brand Name : Innovation

Model Number : IN-MI-019

Place of Origin : China

MOQ : 10 PCS

Price : USD1-USD100

Payment Terms : L/C, T/T

Supply Ability : 1000PIECES/MONTH

Delivery Time : 7-15DAYS

Packaging Details : CARTON

Material : Stainless Steel

Capacity : 5~500kg

Contact Now

Stainless Steel 5~500kg Mini Force Sensor IN-MI-019

Force measurement in small space installation, such as feeling tester for keyboard switch, compression force measurement for hot and cold lamination machine, and grasping force measurement for robotic hands

Capacity	5~500kg	Material	Stainless Steel
Rated Output	1.0-1.5mV/V	Output Impedance	350(1000)±3Ω
Zero Balance	±2%F.S.	Insulation	≥5000MΩ/100VDC
Non-linearity	0.5-1.0%F.S.	Recommended Excitation	2.5-5V
Hysteresis	0.5%F.S.	Maximum Excitation	5V
Repeatability	0.5%F.S.	Compensated Temp Range	-10~60ºC
Creep (30min)	0.1%F.S.	Operating Temp Range	-20~80ºC
Temp Effect on Output	0.1%F.S./10ºC	Safe Load Limit	120%
Temp Effect on Zero	0.1%F.S./10ºC	Ultimate Load Limit	150%
Input Impedance	350(1000)±10Ω	Cable Size	φ2 x 3m
Wire Connection	Ex + : Red; Ex - : Black; Sig + : Green; Sig - : White

Quality Stainless Steel 5~500kg Mini Force Sensor IN-MI-019 wholesale

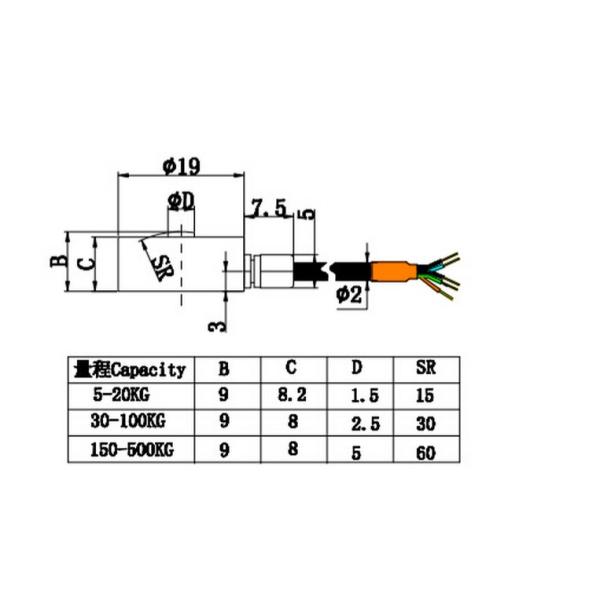

Stainless Steel 5~500kg Mini Force Sensor IN-MI-019 Images
